Crop a raster

This example demonstrates the cropping of a raster using geoutils.Raster.crop().

We open a raster and vector, and subset the latter.

import geoutils as gu

filename_rast = gu.examples.get_path("everest_landsat_b4")
filename_vect = gu.examples.get_path("everest_rgi_outlines")
rast = gu.Raster(filename_rast)
vect = gu.Vector(filename_vect)
vect = vect[vect["RGIId"] == "RGI60-15.10055"]

The first raster has larger extent and higher resolution than the vector.

rast.info()
print(vect.bounds)

Driver:               GTiff
Opened from file:     /home/docs/checkouts/readthedocs.org/user_builds/adebardo-geoutils/checkouts/latest/geoutils/example_data/Everest_Landsat/LE71400412000304SGS00_B4.tif
Filename:             /home/docs/checkouts/readthedocs.org/user_builds/adebardo-geoutils/checkouts/latest/geoutils/example_data/Everest_Landsat/LE71400412000304SGS00_B4.tif
Loaded?               False
Modified since load?  False
Grid size:            800, 655
Number of bands:      1
Data types:           uint8
Coordinate system:    ['EPSG:32645']
Nodata value:         None
Pixel interpretation: Point
Pixel size:           30.0, 30.0
Upper left corner:    478000.0, 3108140.0
Lower right corner:   502000.0, 3088490.0

BoundingBox(left=np.float64(86.89820460200008), bottom=np.float64(28.00781958500005), right=np.float64(86.97674208800004), top=np.float64(28.095011473000056))

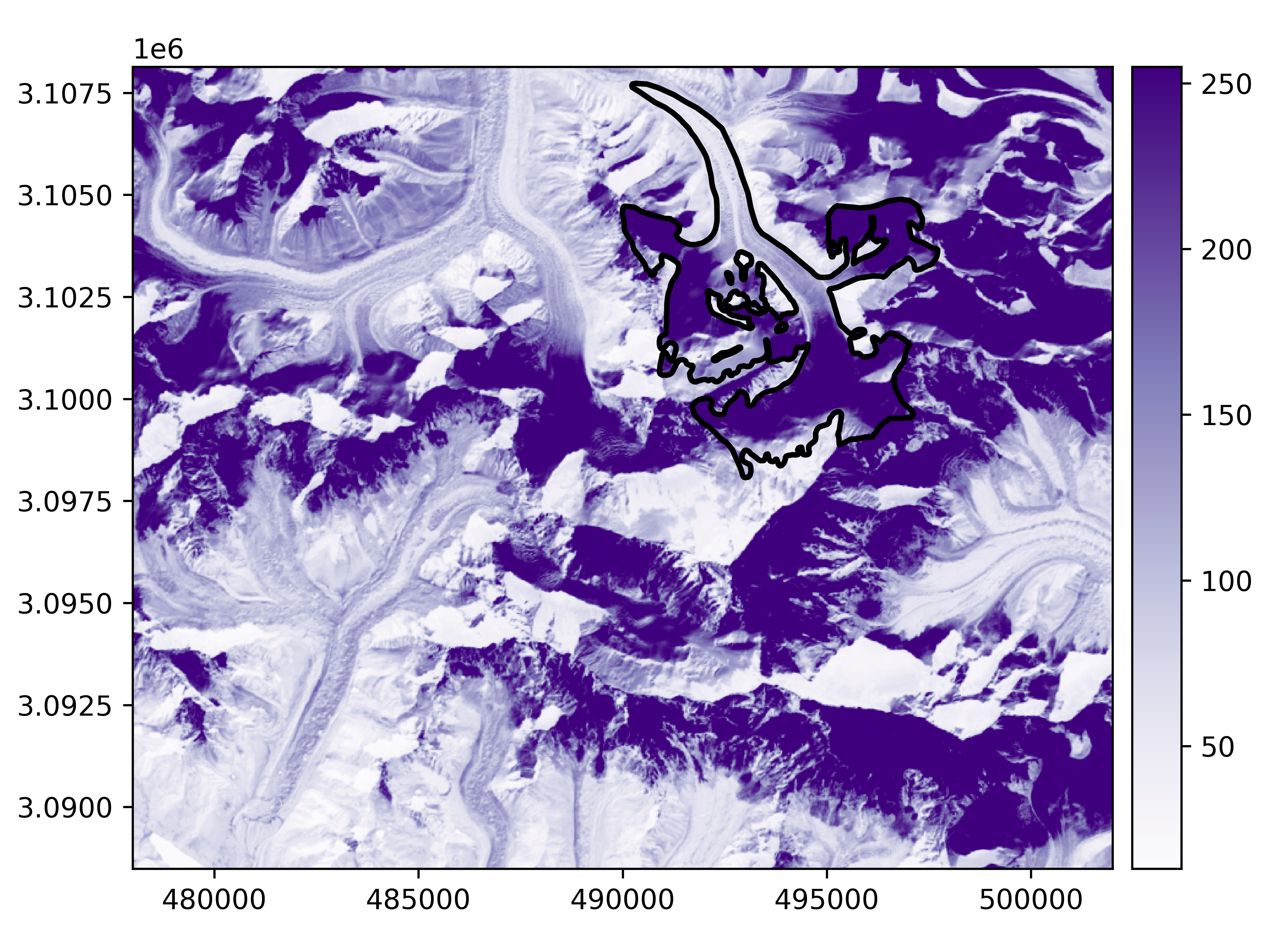

Let’s plot the raster and vector.

rast.plot(cmap="Purples")
vect.plot(ref_crs=rast, fc="none", ec="k", lw=2)

First option: using the vector as a reference to match, we reproject the raster. We simply have to pass the Vector as single argument to crop(). See Match-reference functionality for more details.

rast = rast.crop(vect)

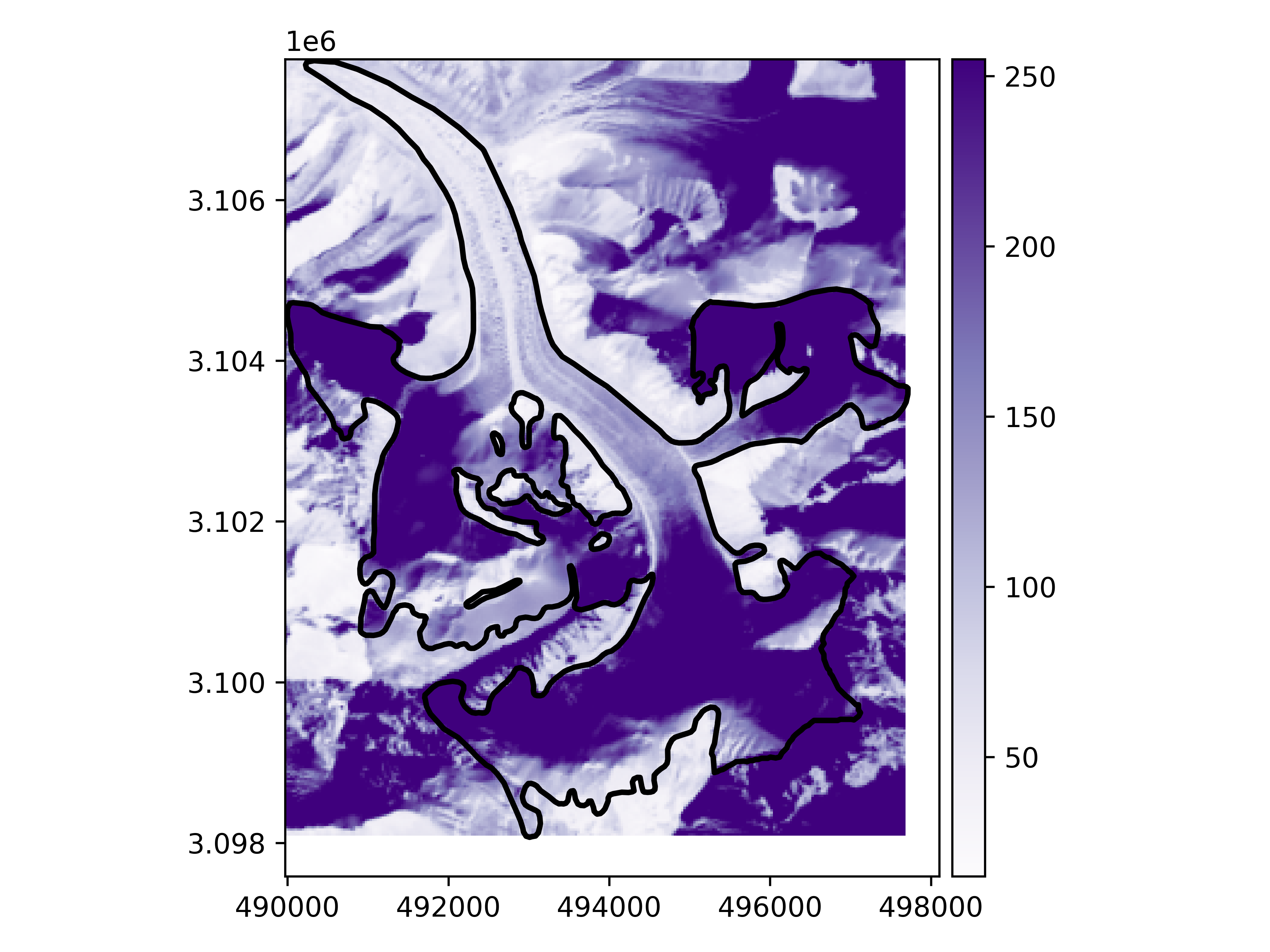

Now the bounds should be the same as that of the vector (within the size of a pixel as the grid was not warped).

Note

By default, crop() is done in-place, replacing rast. This behaviour can be modified by passing inplace=False.

rast.plot(ax="new", cmap="Purples")
vect.plot(ref_crs=rast, fc="none", ec="k", lw=2)

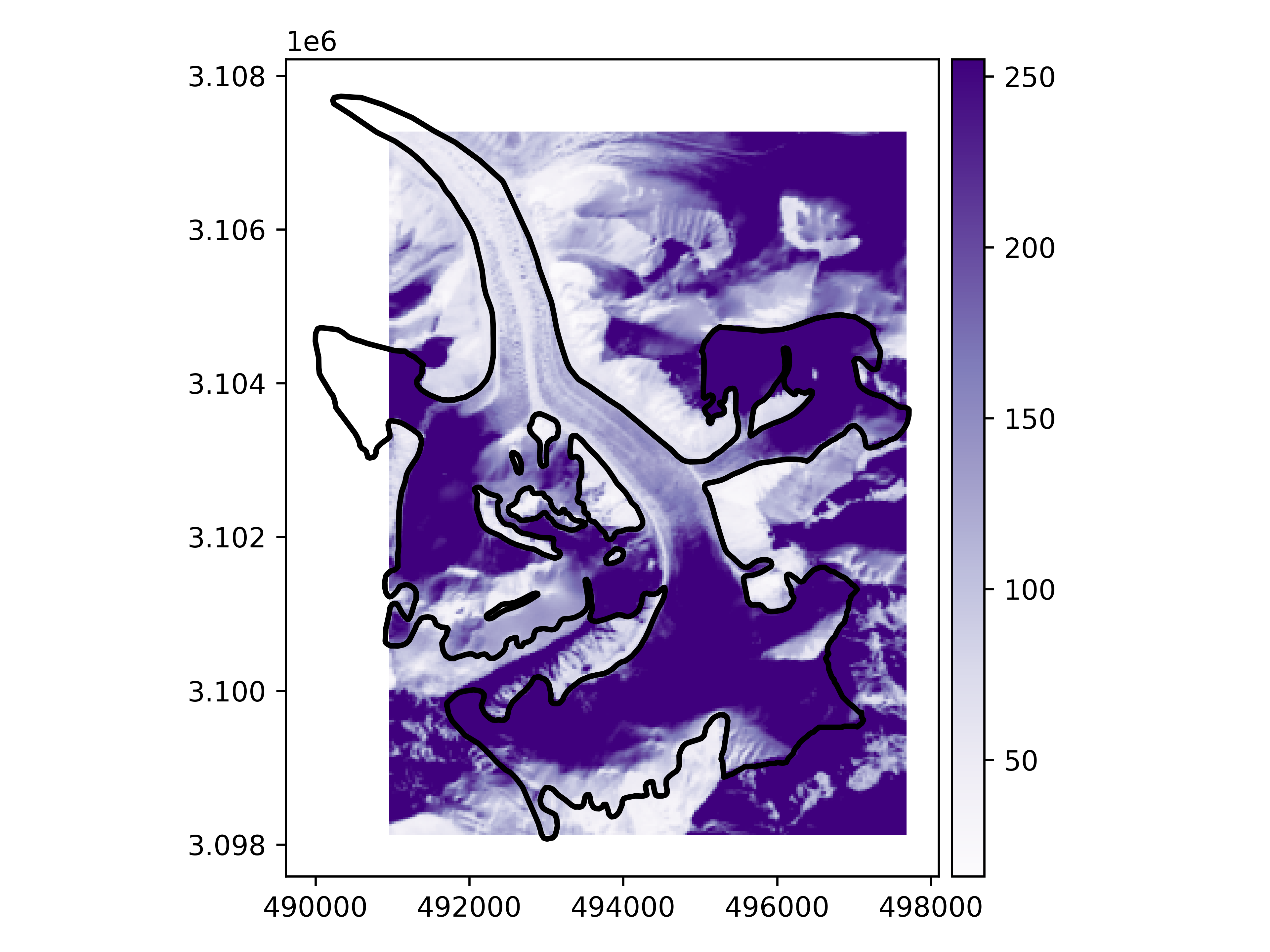

Second option: we can pass other crop_geom argument to crop(), including another Raster or a simple tuple of bounds. For instance, we can re-crop the raster to be smaller than the vector.

rast = rast.crop((rast.bounds.left + 1000, rast.bounds.bottom, rast.bounds.right, rast.bounds.top - 500))

rast.plot(ax="new", cmap="Purples")
vect.plot(ref_crs=rast, fc="none", ec="k", lw=2)
